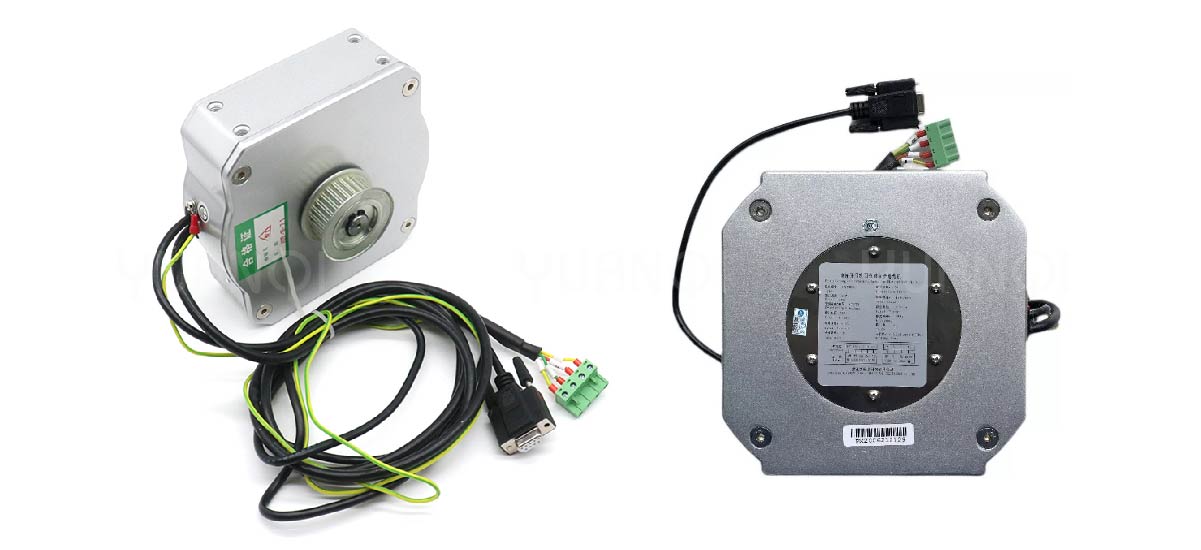

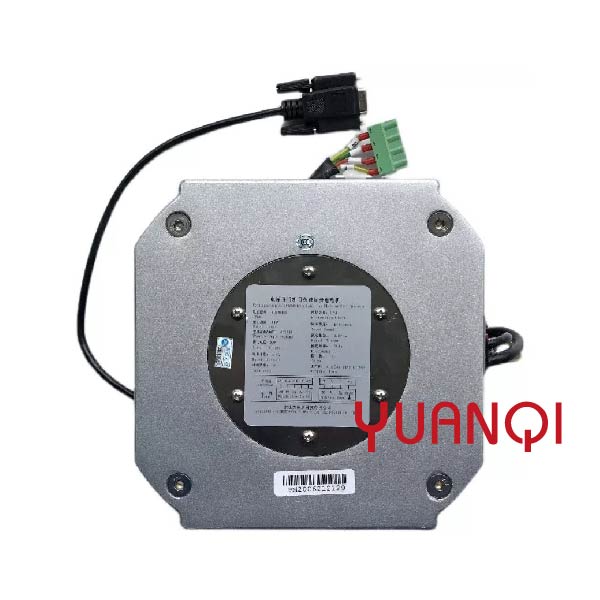

Elevator door motor PM81842
Specifications
Specifications

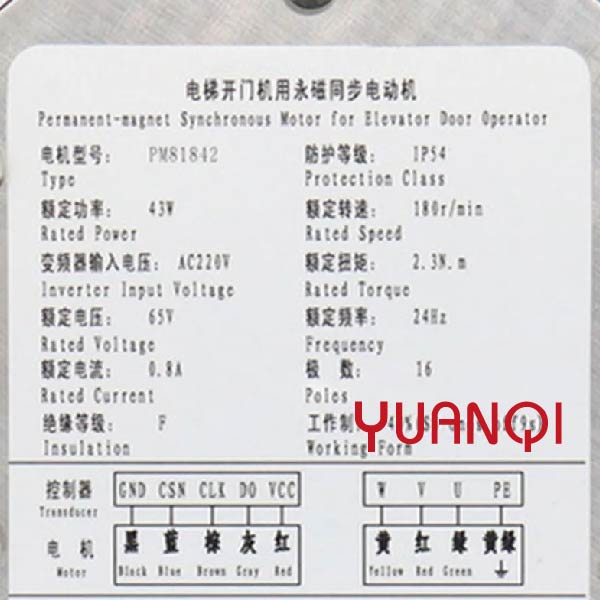

| PM81842 Permanent magnet synchronous motor for elevator door | |
| Rated current | 0.8A |
| Rated voltage | 65V |
| Rated speed | 180r/min |
| Poles | 16 |
| Frequency | 24Hz |
| Rated power | 43W |
| Inverter Input Voltage | AC220V |
| Insulation | F |
| Protection class | IP54 |
| Working form | 40% |
Elevator door motor PM81842, DO3000 door machine motor for XIZI elevator. For any additional information, please feel free to reach out.
