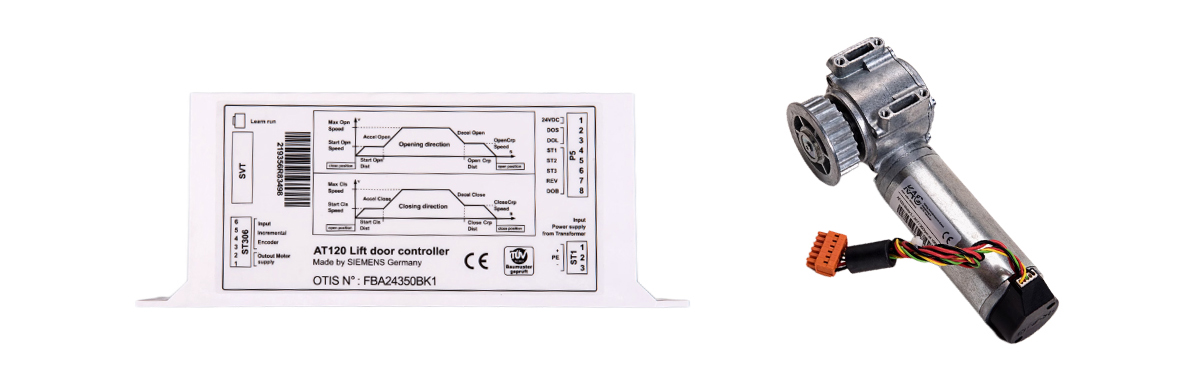

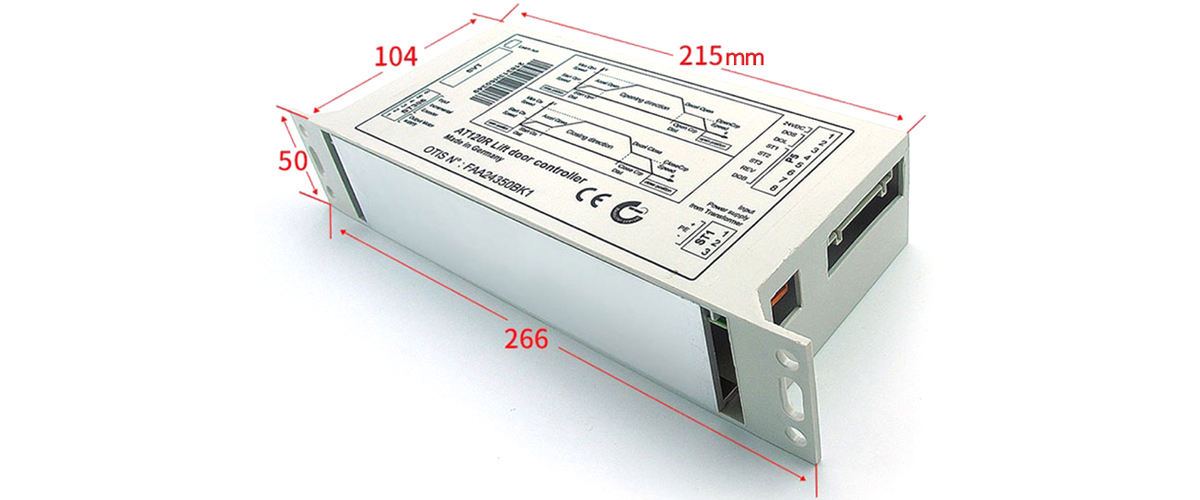

AT120 door controller is a special door controller for Otis elevator, and is used together with the matching door motor, and the transformer supplies power to it. It is efficient, reliable, easy to operate, and has low mechanical vibration. It is suitable for door systems with a net door opening width of no more than 900mm. The maximum weight of the moving parts that can be dragged is 120kg. Applicable ladder types: SKY ACD1/SKY ACD2/SKY ACD3.
Door motor parameters:
DC, built-in incremental speed encoder
Rated voltage: Un=DC24V
Rated speed: Nn=3050min/1
Rated torque: fn=10Ncm
Transformer parameters:
Rated voltage: AC230V/400V(-15%/+10%), 50/60HZ, single phase
Output voltage: DC32V
Advantages:
1. GAA24350BP1 is an upgraded replacement for FAA24350BK1
2. We have our own technical team, all of whom are experienced engineers who have been deeply involved in the elevator industry for 10-20 years and can help customers solve all problems.
3. One year warranty.
4. Technique support: A technical service team of more than 50 people, 80% of whom have more than ten years of rich technical experience. Technical engineers are on call at any time to respond to customer calls at any time.
