In elevator operation, smooth guidance along the rail is essential. Even when major components are functioning normally, problems such as noise, vibration, or unstable travel often come from worn guiding parts. One of these parts is the roller guide shoe wheel, which is widely used in modern elevators with rolling guide shoes.
Although it is a relatively small component, the condition of the guide shoe wheel has a clear influence on elevator stability and ride comfort.
Guide Shoes in Elevator Operation
An elevator guide shoe is installed between the guide rail and the elevator car or counterweight. Its function is simple but critical: to keep the car or counterweight correctly positioned on the rail and allow only vertical movement.
When the guide shoe works properly, the car remains stable on the rail. When it wears or loses accuracy, lateral movement and vibration may occur, affecting both safety and passenger comfort.
Rolling Guide Shoes and Typical Applications
Rolling guide shoes are commonly used in elevators with running speeds above 2 m/s. Instead of sliding contact, rolling guide shoes use three or six wheels to guide the rail.
Compared with sliding guide shoes, rolling guide shoes offer several practical advantages:
Rolling contact reduces friction loss
Less wear on both the guide shoe and the rail
Lower operating noise
Smoother movement, especially at higher speeds
Role of the Roller Guide Shoe Wheel

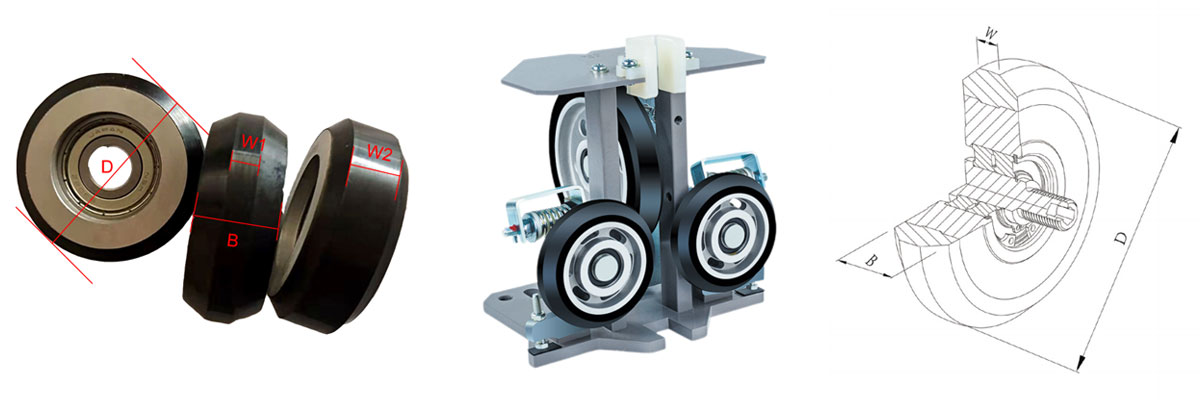

The roller guide shoe wheel is the part that directly contacts the guide rail. During operation, it runs continuously under load and absorbs vibration from the rail.
Because of this working condition, the guide shoe wheel is considered a wear part. Over time, the wheel surface and internal bearing may wear, which can lead to increased noise or uneven movement.
Guide shoe wheels require regular inspection
Replacement is part of routine elevator maintenance
Wheel dimensions may differ depending on installation position, such as the car side or the counterweight side
Correct matching of size and structure is important for proper guiding performance.
The roller guide shoe wheel is not a complex part, but it plays an important role in elevator guiding accuracy and operating comfort. In both routine maintenance and modernization projects, selecting suitable guide shoe wheels contributes to stable, quiet, and reliable elevator operation.
