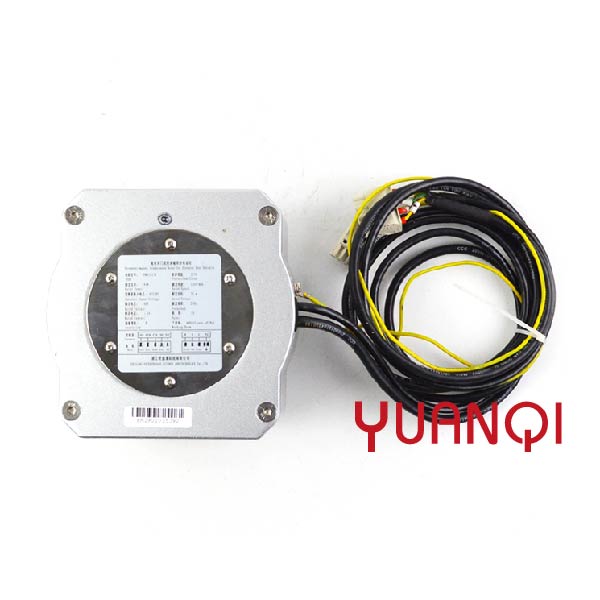

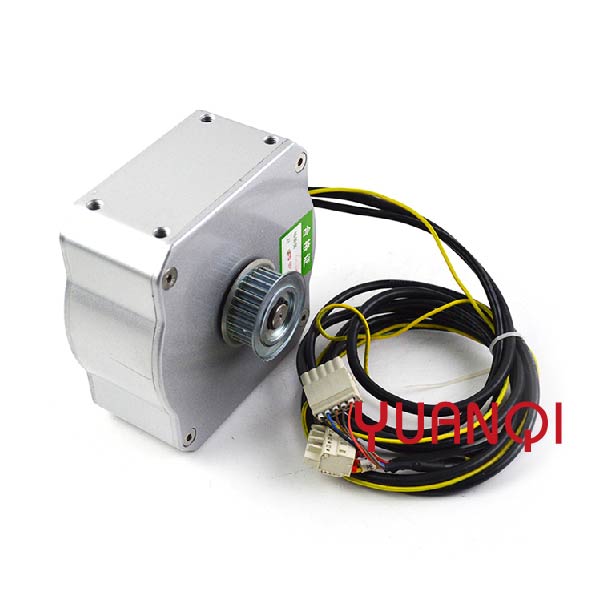

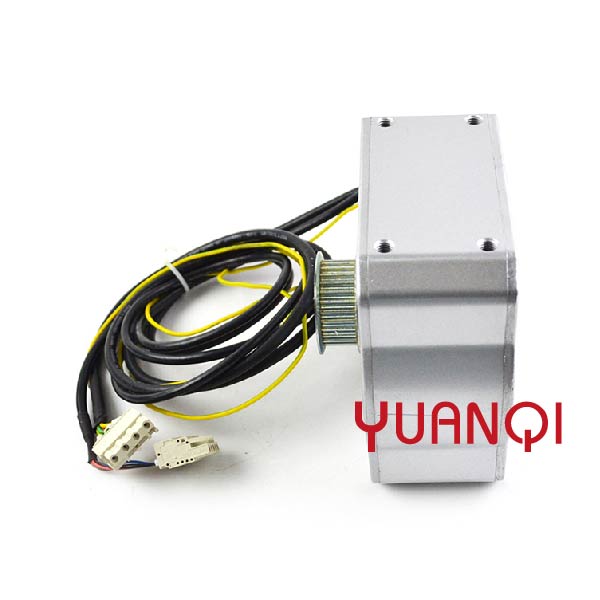

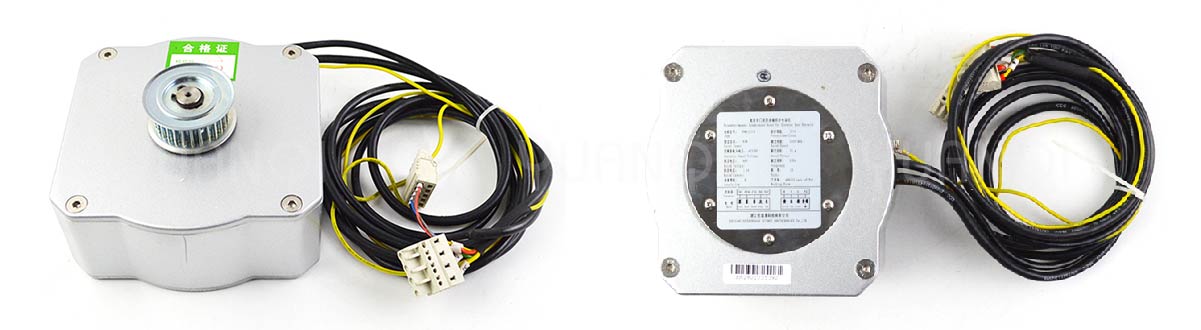

Elevator Door Motor PM61855D for Otis Elevator
Specifications
Specifications

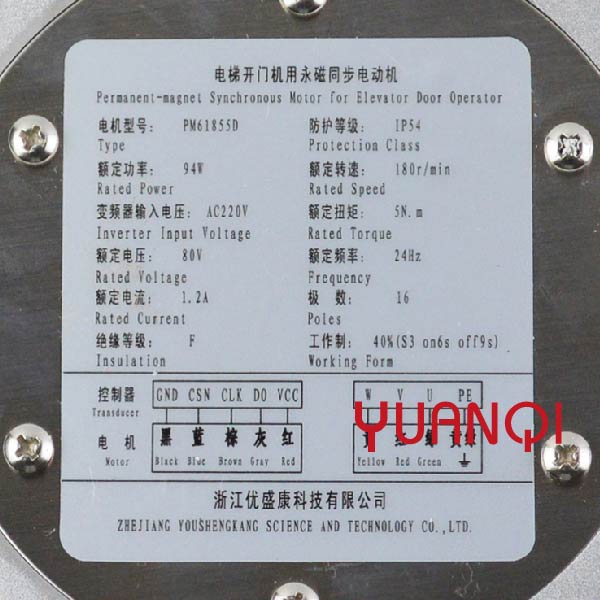

| PM61855D Permanent magnet synchronous motor for elevator door | |
| Rated current | 1.2A |
| Rated voltage | 80V |
| Rated speed | 180r/min |
| Poles | 16 |
| Frequency | 24Hz |
| Rated power | 94W |
| Rated torque | 5N.m |
| Inverter Input Voltage | AC220V |
| Insulation | F |
| Protection class | IP54 |
| Working form | 40% |
Elevator door motor PM61855D is suitable for Otis elevator. Permanent-magnet synchronous motor for elevator door operator.
