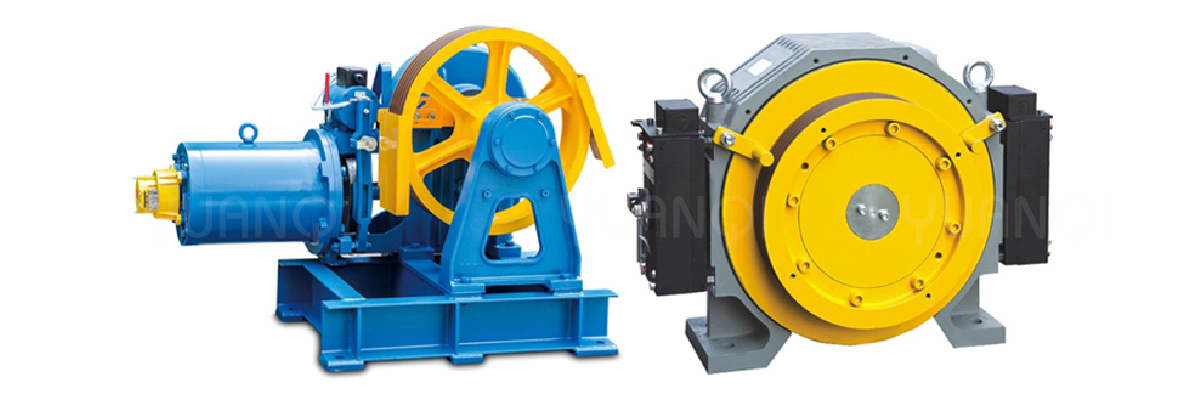

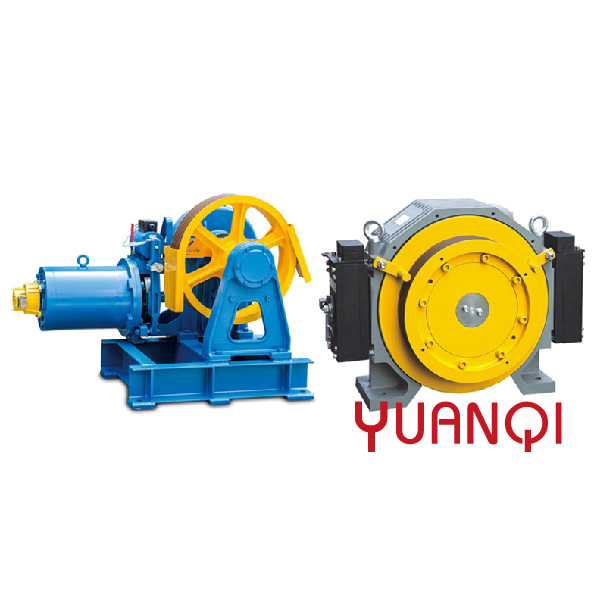

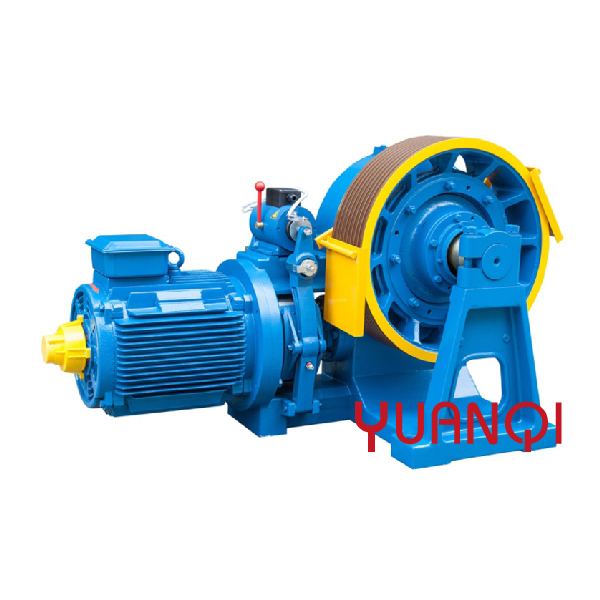

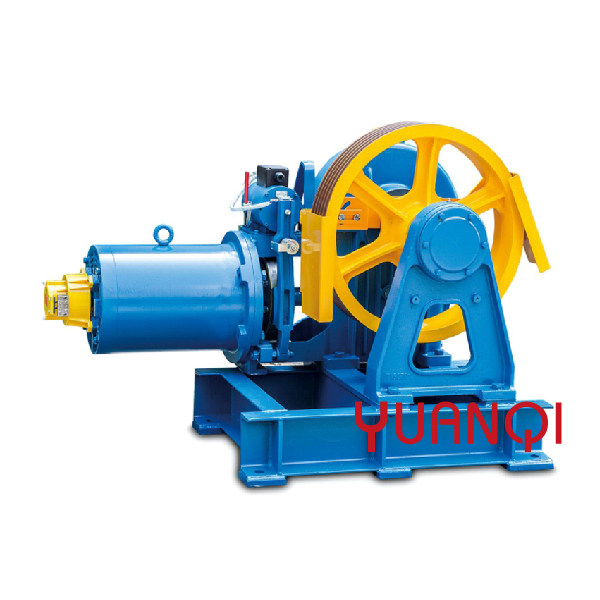

Torin lift çekiş maşyny GTW7 YJ240B FYJ200 hereketlendirijili dişli we dişsiz çekiş maşynynyň eýesi
Önümiň görkezilişi
Tehniki häsiýetnamalar
| Spesifikasiýa | Ýük (kg) | Lift tizligi (m/s) | Boýy (m) | Şew Diam (mm) | Ip şkiwi (mm) | Häzirki (A) | Moment (Nm) | Nominal tizlik (aýlanma/min) | Ýygylyk (Hz) | Güýç (kW) | Polýus | Bahalandyryş | INS.Şass | IP kody |
| GTW7-30P5 | 320 | 0.5 | ≤80 | Φ325 | 3xΦ8x12 | 3.1 | 200 | 59 | 9.8 | 1.3 | 20 | S5 (40%) | F | IP41 |
| GTW7-31P0 | 320 | 1 | ≤80 | Φ325 | 3xΦ8x12 | 5.8 | 200 | 118 | 19.6 | 2.5 | 20 | S5 (40%) | F | IP41 |
| GTW7-31P5 | 320 | 1.5 | ≤80 | Φ325 | 3xΦ8x12 | 9.2 | 200 | 177 | 29.5 | 3.7 | 20 | S5 (40%) | F | IP41 |
| GTW7-31P6 | 320 | 1.6 | ≤80 | Φ325 | 3xΦ8x12 | 9.2 | 200 | 189 | 31.5 | 4 | 20 | S5 (40%) | F | IP41 |
| GTW7-31P7 | 320 | 1.75 | ≤80 | Φ325 | 3xΦ8x12 | 9.9 | 200 | 206 | 34.3 | 4.3 | 20 | S5 (40%) | F | IP41 |
| GTW7-40P5 | 450 | 0.5 | ≤80 | Φ325 | 4xΦ8x12 | 4.1 | 265 | 59 | 9.8 | 1.6 | 20 | S5 (40%) | F | IP41 |
| GTW7-41P0 | 450 | 1 | ≤80 | Φ325 | 4xΦ8x12 | 7.9 | 265 | 118 | 19.6 | 3.3 | 20 | S5 (40%) | F | IP41 |
| GTW7-41P5 | 450 | 1.5 | ≤80 | Φ325 | 4xΦ8x12 | 12.2 | 265 | 177 | 29.5 | 4.9 | 20 | S5 (40%) | F | IP41 |
| GTW7-41P6 | 450 | 1.6 | ≤80 | Φ325 | 4xΦ8x12 | 12.2 | 265 | 189 | 31.5 | 5.3 | 20 | S5 (40%) | F | IP41 |
| GTW7-41P7 | 450 | 1.75 | ≤80 | Φ325 | 4xΦ8x12 | 13.1 | 265 | 206 | 34.3 | 5.7 | 20 | S5 (40%) | F | IP41 |
| GTW7-50P5 | 550 | 0.5 | ≤80 | Φ325 | 5xΦ8x12 | 6.4 | 290 | 59 | 9.8 | 1.8 | 20 | S5 (40%) | F | IP41 |
| GTW7-50P6 | 550 | 0.63 | ≤80 | Φ325 | 5xΦ8x12 | 6.4 | 290 | 74 | 12.3 | 2.3 | 20 | S5 (40%) | F | IP41 |
| GTW7-50P7 | 550 | 0.75 | ≤80 | Φ325 | 5xΦ8x12 | 9.3 | 290 | 88 | 14.6 | 2.7 | 20 | S5 (40%) | F | IP41 |
| GTW7-51P0 | 550 | 1 | ≤80 | Φ325 | 5xΦ8x12 | 9.3 | 290 | 118 | 19.6 | 3.6 | 20 | S5 (40%) | F | IP41 |
| GTW7-60P5 | 630 | 0.5 | ≤80 | Φ325 | 5xΦ8x12 | 7.1 | 322 | 59 | 9.8 | 2 | 20 | S5 (40%) | F | IP41 |
| GTW7-60P6 | 630 | 0.63 | ≤80 | Φ325 | 5xΦ8x12 | 7.1 | 322 | 74 | 12.3 | 2.5 | 20 | S5 (40%) | F | IP41 |
| GTW7-60P7 | 630 | 0.75 | ≤80 | Φ325 | 5xΦ8x12 | 10.3 | 322 | 88 | 14.6 | 3 | 20 | S5 (40%) | F | IP41 |
| GTW7-61P0 | 630 | 1 | ≤80 | Φ325 | 5xΦ8x12 | 10.3 | 322 | 118 | 19.6 | 4 | 20 | S5 (40%) | F | IP41 |
Bellik:
Maşyn el çarhy we 4 metrlik uzakdan dolandyrylýan el tormozy bilen sazlanyp bilner.
"Bu maşyn 63 kg ýük ýüklemek üçin ulanylanda, liftiň deňagramlylyk ulgamynyň koeffisiýenti 0,47-den az bolmaly däl."
"Bu maşyn ≤450 kg ýüklemek üçin ulanylanda, tormozlaryň tok güýji 2*0.84A bolýar; bu maşyn 450 kg-dan gowrak ýüklemek üçin ulanylanda, tormozlaryň tok güýji 2*1.1A bolýar."
