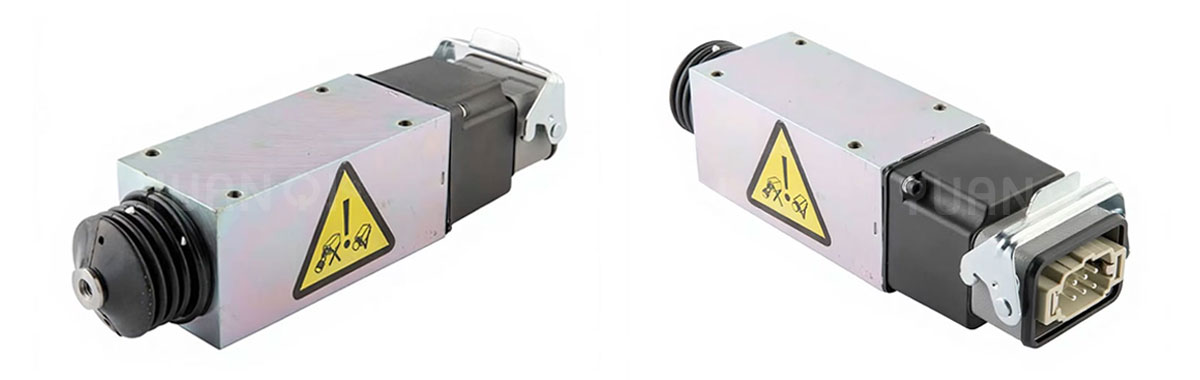

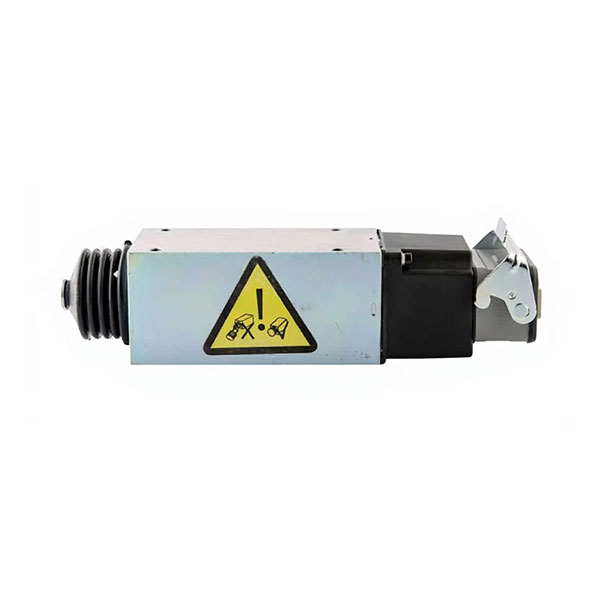

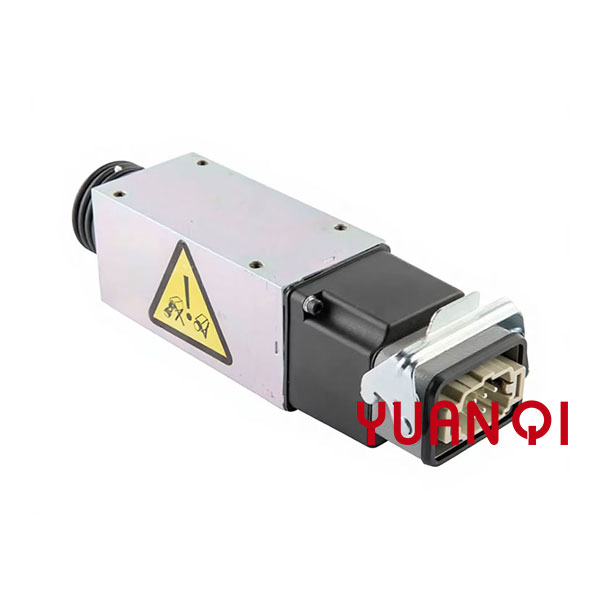

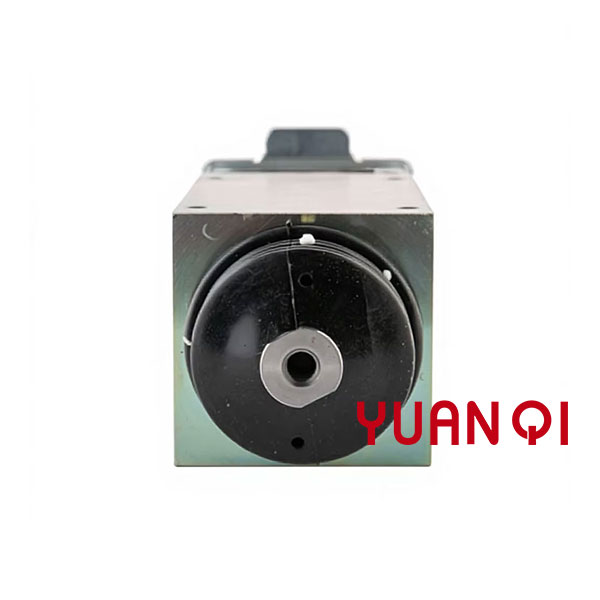

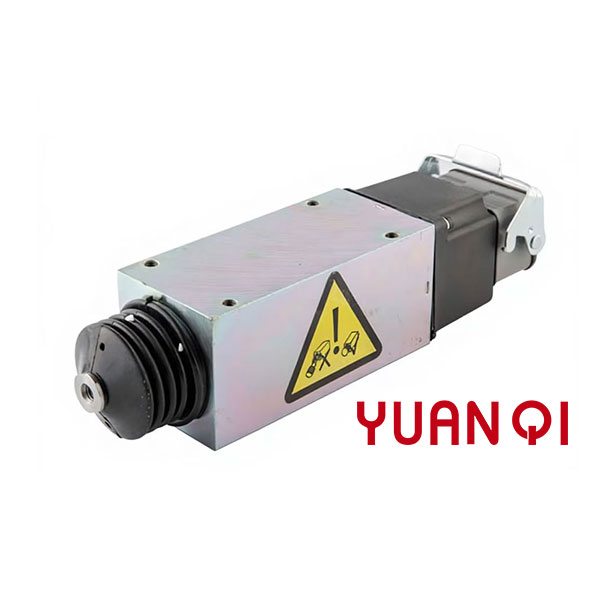

9300 9500 Escalator Brake 897200 Electromagnet Brake Escalator Parts
The 897200 Brake Magnet is a core braking component used in escalators and moving walks. It is widely applied in 9300, 9300AE, and 9500 series systems.
Also known as the main electromagnetic brake, this component ensures safe stopping by controlling the release and engagement of the brake mechanism through electromagnetic force.
|
Item |
Description |
| Part Number | 897200 |
| Application | Escalators & Moving Walks |
| Applicable Models | 9300 / 9300AE / 9500 |
| Working Voltage | DC 110V / DC 200V (confirm before order) |
| Function | Electromagnetic brake release & engagement |
Common Fault Symptoms
- Abnormal Noise / Vibration
Caused by oil contamination or worn contact surfaces. - Overheating
Due to coil aging or unstable voltage supply. - Brake Failure / Not Releasing
Possible armature sticking or coil damage, leading to startup failure or unsafe stopping distance.
Installation & Maintenance Tips
- Brake Gap Adjustment
After replacement, adjust the brake clearance strictly according to standards:
Recommended range: 0.2 mm – 0.5 mm - Coil Inspection
Use a multimeter to regularly check coil resistance to avoid short circuit or open circuit. - Brake Pad Check
Inspect the brake lining (pad) condition. Replace if thickness is below limit.
FAQs
To ensure compatibility, please provide the brand, model, or part number of your elevator. You can also send us photos of the existing part, especially the label or connector details. Our technical team will help you verify the correct replacement.
We supply both original brand parts and high-quality compatible replacements for major brands such as KONE, Otis, etc. All products are tested to ensure reliable performance.
Most products support low MOQ or even 1 piece for sample orders. Bulk orders will enjoy better pricing.
We have three strategically located warehouses in Saudi Arabia, Jiangsu, and Xi'an, ensuring stable inventory and fast delivery to meet global customer demands.
We accept T/T, Western Union, Alipay, and other common payment methods, providing flexible options for our global customers.
Yes, most products come with a 1 year warranty.
Yes, we ship worldwide via DHL, FedEx, UPS, air freight, or sea freight, depending on your needs and urgency.
Yes, our experienced team provides pre-sales selection support and after-sales technical assistance to help ensure correct installation and operation.
