LG(Sigma) Rubber Escalator Parts Handrail

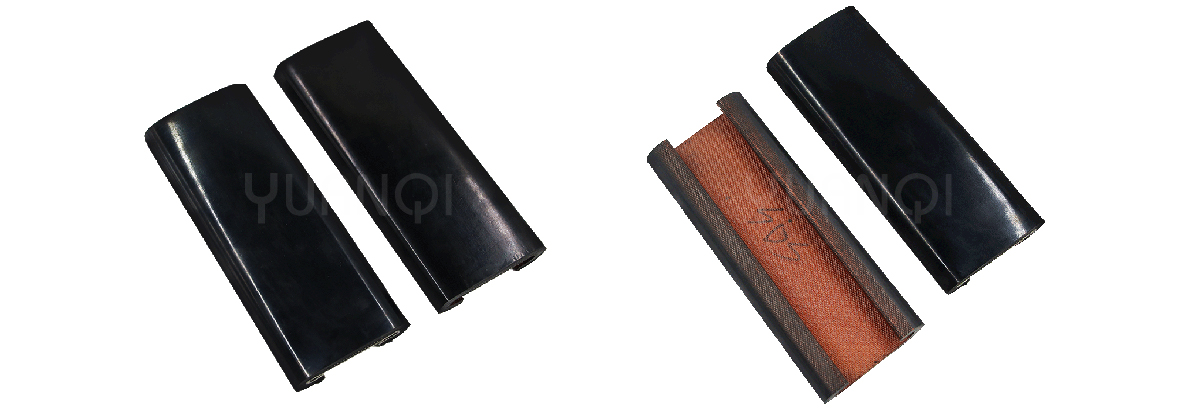

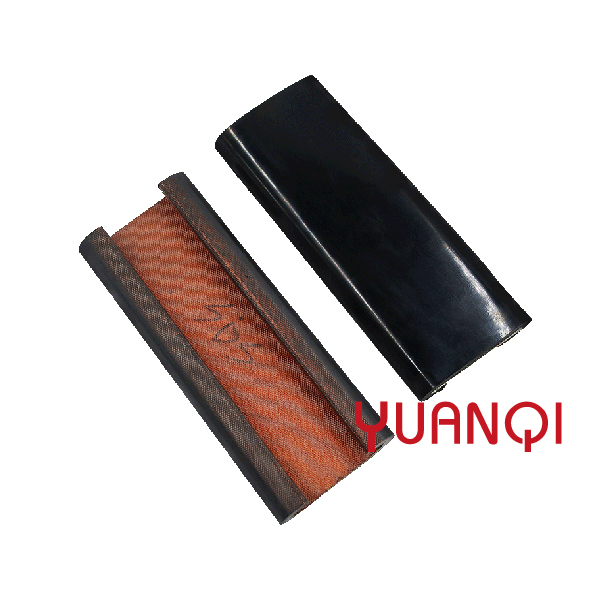

Product Display
Specifications
| Type/Size/Code | Mouth Width(d) | Inner Width(D) | TotalWidth(D1) | Inner High(h) | Top Thickness(h1) | TotalHigh(H) | |
| LG(Sigma) | LG | 39.5+2-1 | 63.5±1 | 82±1 | 12.5±0.8 | 121 | 33±1 |
| LG-1 | 42+2-1 | 64.5±1 | 82±1 | 16.5±O.8 | 12±1 | 36±1 | |
| LG-2 | 36+2-1 | 62±2 | 86±2 | 12 | 12±1 | 32±1 | |

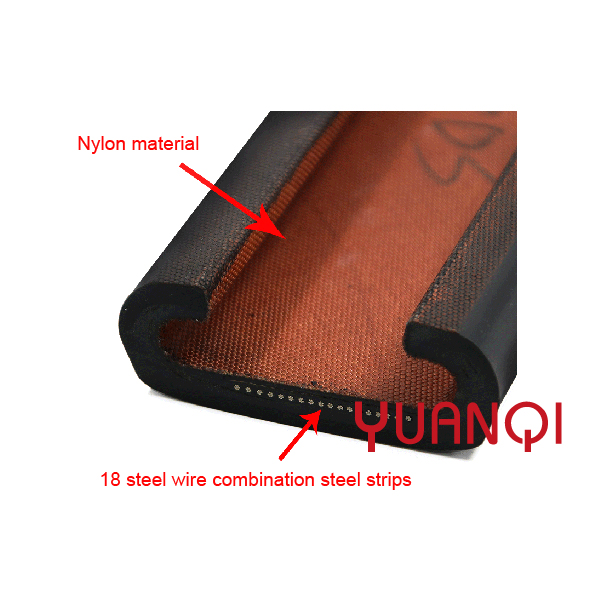

The material of this handrail is polyurethane, the surface is bright without seams, the surface glue is resistant to high temperature without any frosting phenomenon, comfortable to the touch, aging resistant, and will not appear degumming.
For the style, please provide the size according to the size chart below, and contact customer service for confirmation. Please use an accurate steel ruler to measure the number of meters repeatedly, and provide it after confirming that there is no error. The number of meters is accurate to centimeters.
FAQS
Measure:
1. Outer width
2. Inner width
3. Height
4. Total handrail length
Each escalator requires different handrail lengths. The two handrails on the same escalator may also have different lengths.
Polyurethane/rubber material with wear resistance, smooth surface and aging resistance.
1. Confirm escalator brand
2. Check handrail profile
3. Measure cross-section size
4. Confirm total length
5. Verify installation compatibility
