WECO elevator light curtain 917A71
The WECO-917A71 is a high-density flagship universal elevator light curtain system manufactured by WECO.
As the upgraded version of the 917A61 (94-beam) model, the 917A71 significantly increases infrared component density to deliver higher detection precision and enhanced passenger protection.
It is widely used in premium office buildings, hospital elevators, residential projects, and heavy-duty freight elevators for modernization and replacement of elevator door safety systems.

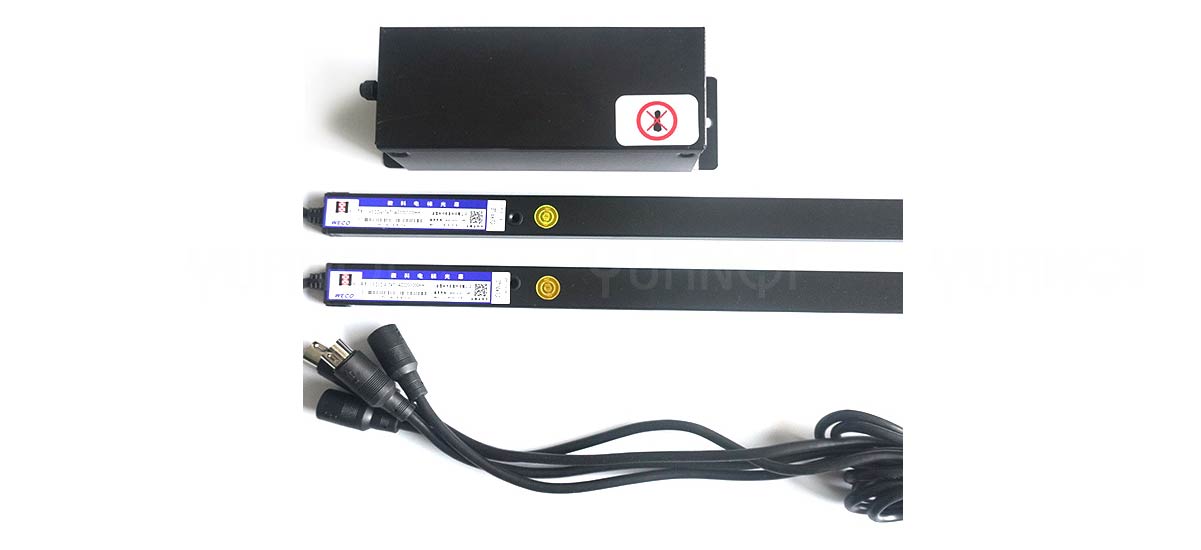

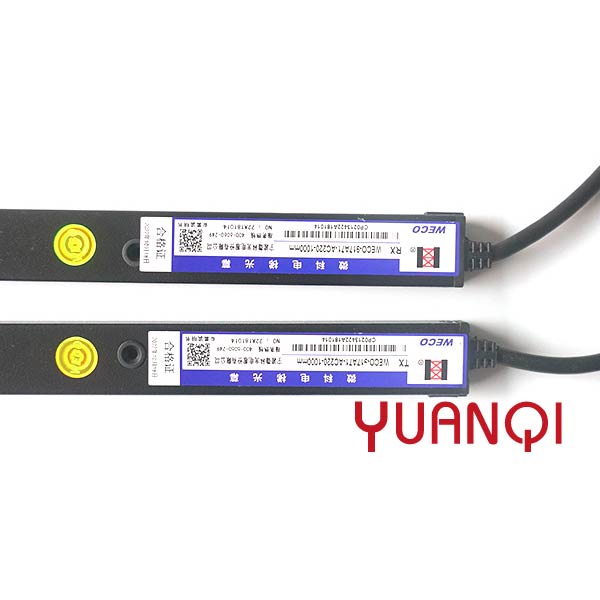

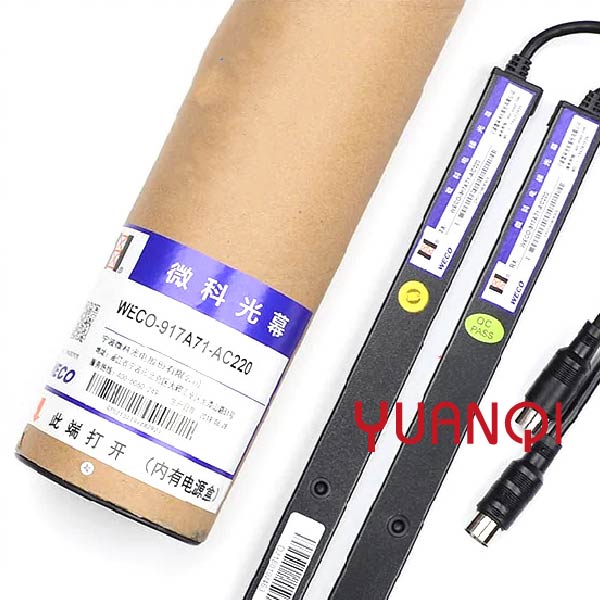

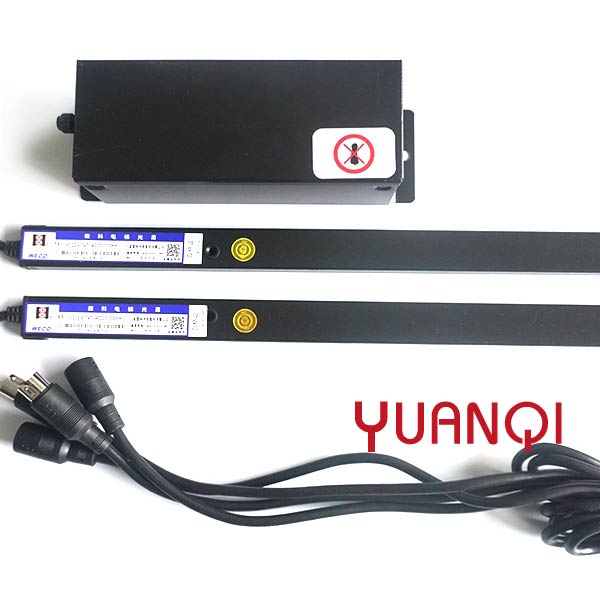

Product Display
Specifications
| Numberofbeams(Max.) | 94 |
| Operatingenvironment | -20°C-+65°C |
| LightImmunity | 100000Lux |
| Verticaltolerance | +/-15mm,7° |
| Horizontaltolerance | +/-3mm,5° |
| Dimensions | H2000mm*W24mm*D11mm |
| Detectingheight | 20mm-1841mm |
| Detectingrange | 0-4m |
| Responsetime | 45ms |
| Powerconsumption | ≤4Wor100Ma@DC24V |
| Signaloutput | Relayoutput(AC220V,AC110V,DC24V) orTransistoroutput(NPN,PNP) |
| LEDpowerIndicatorinreceiver | YellwLEDwhenitisdetecting |
| LEDstatusIndicatorinreceiver | RedLEDwhenitisdetecting |
| Numberofdiodes | 17pairs(34pcs) |
| Infrareddiodesrange | 117.5mm |
| Voicereminder | BuzzerInRX,aftercontinuousdetectionfor15s,buzzeron |
| EMC | EN12015,EN12016 |
| |Vibration | 20to500Hz4hoursperX-Y-ZaxisSinuaoidalvibration |
| 30Hzrms30minsPerX-Y-Zaxis | |
| ProtectionLevel | |IP54(TX,RX),IP31(Powerbox) |
Using WECO proprietary multi-cross scanning technology, the 917A71 creates up to 128 crossed infrared beams across the elevator entrance.
Compared with 917A61 (94 beams):
|
Feature |
917A61 |
917A71 |
| Beam Count | 94 | 128 |
| Detection Density | Standard | High |
| Blind Zone | Larger | Minimal |
| Detection Precision | Good | Enhanced |
The denser beam network provides improved protection against small obstacles and narrow blind areas.
