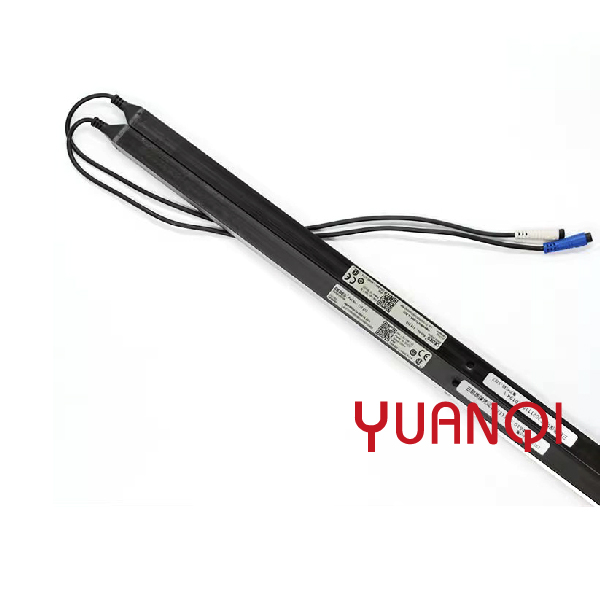

CEDES elevator light curtain T/RX-2000-16 Minimax-159/79
The SY-2000-16 Elevator Light Curtain System is a high-performance infrared door protection solution widely used in elevator maintenance and modernization. It consists of the TX-2000-16 transmitter and RX-2000-16 receiver, working together to provide reliable passenger safety protection.
This model is highly compatible with major elevator brands such as KONE and Mitsubishi Electric, making it an ideal replacement solution for original systems.

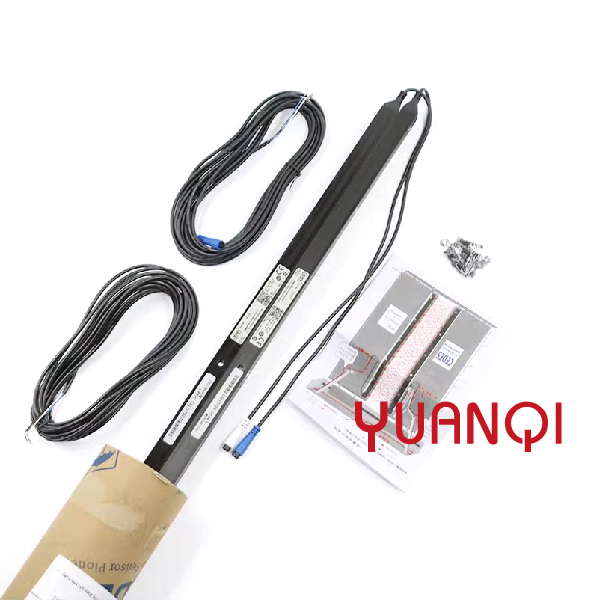

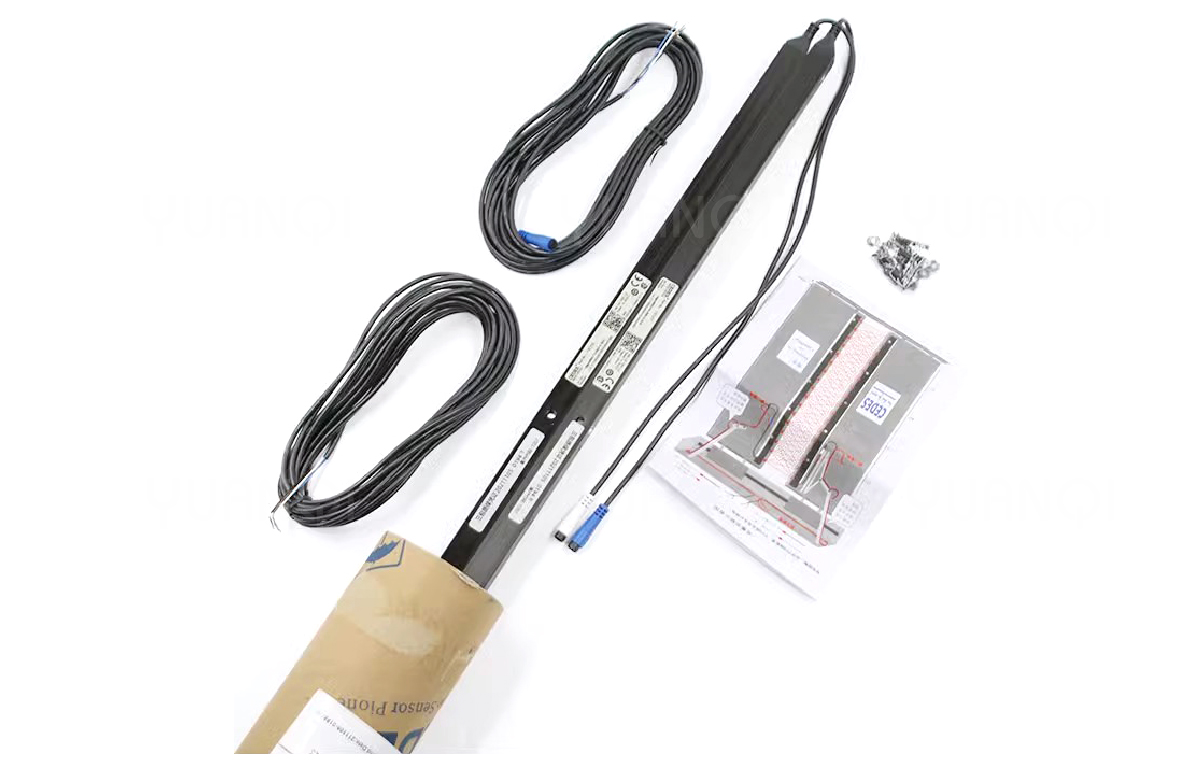

SY-2000-16: Complete light curtain kit

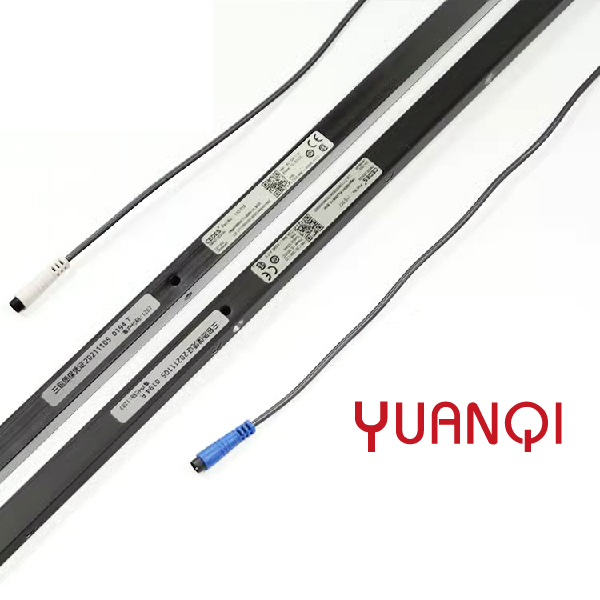

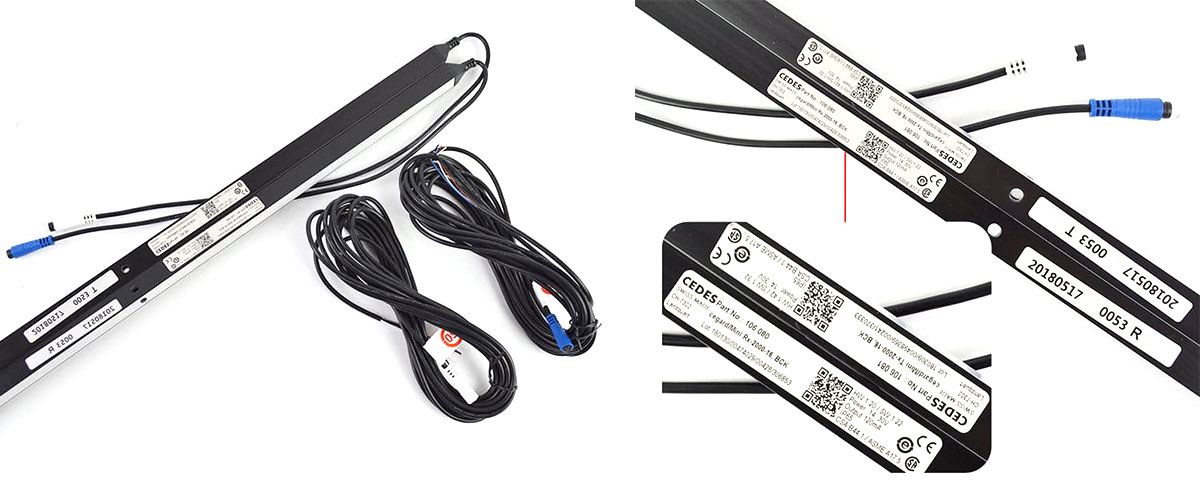

TX-2000-16: Transmitter (TX)
RX-2000-16: Receiver (RX)
Compatibility: Direct replacement for MiniMax-159 and MiniMax-79
| Brand | Type | Overall dimensions | Protection height | Response time | Optical eye distance | Maximum beams | Infrared wavelength | Applicable |
| CEDES | mini TX-2000-16 | 12*16*2000mm | 1582mm/1822mm | 60ms (16E) | 12mm (16E) | 154 | 925 | General |
Product Features
●Low energy consumption
●Advanced technology ensures reliable product performance
●Suitable for static and dynamic applications
●Controller built-in LED indicator light
●Short circuit protection, PNP/NPN transistor output (push-pull type)
●No need for grounding
●Monitoring heights of 1,582 mm or 1,822 mm available
●Extremely strong cable that can withstand 20,000,000 door opening and closing times
●IP67 protection level
●An explosion-proof version is available
●Supports side door and center door installation; installation holes are compatible with cegard/Max and MiniMax
Power Supply Solution
Standard modern elevator systems support DC 24V direct connection.
For older systems without DC output, optional power supply units are available:
SPS-2C Power Box
SPS-2D Power Box
