Elevator Spare Parts Oil Can Collection Box Square Oil Cup
The Universal Small Square Guide Rail Oil Cup is specially designed for compact elevator shafts and automatic guide rail lubrication systems.
It is commonly used on car auxiliary guide rails and counterweight guide rails in residential elevators and medium-to-low-speed passenger elevators.
Its compact horseshoe-style structure provides stable lubrication while fitting within limited installation space.

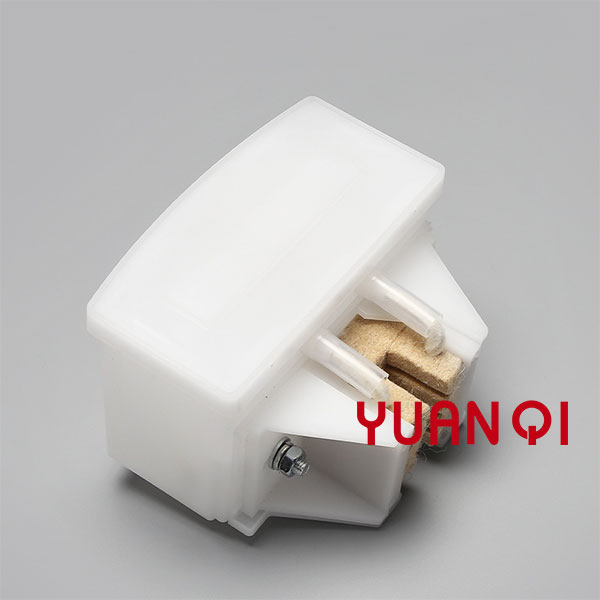

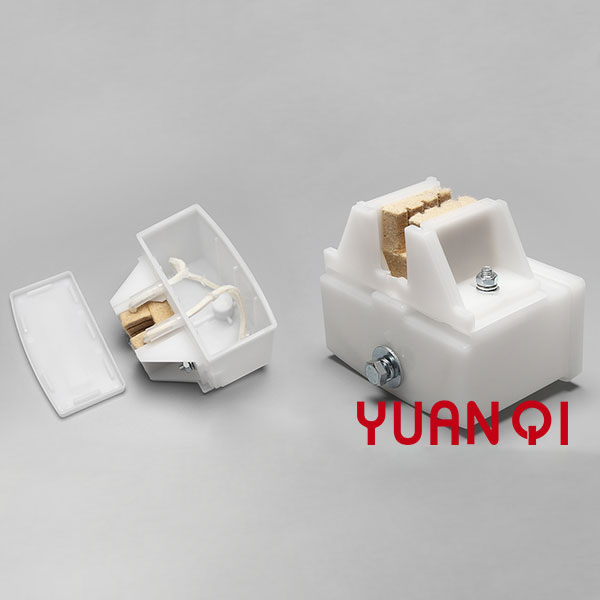

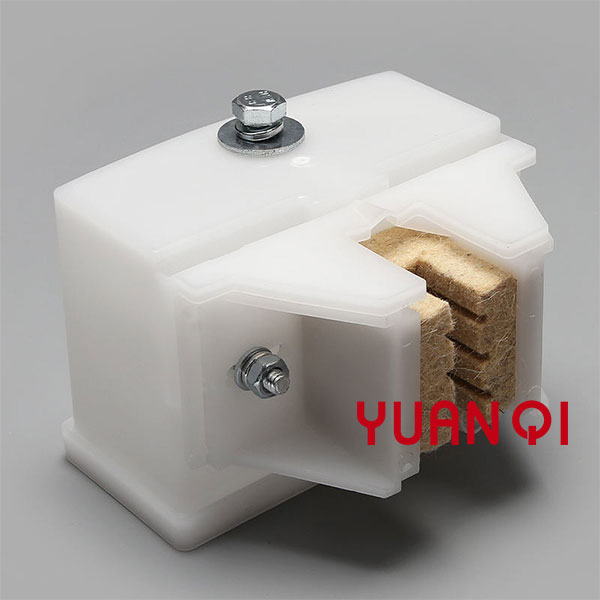

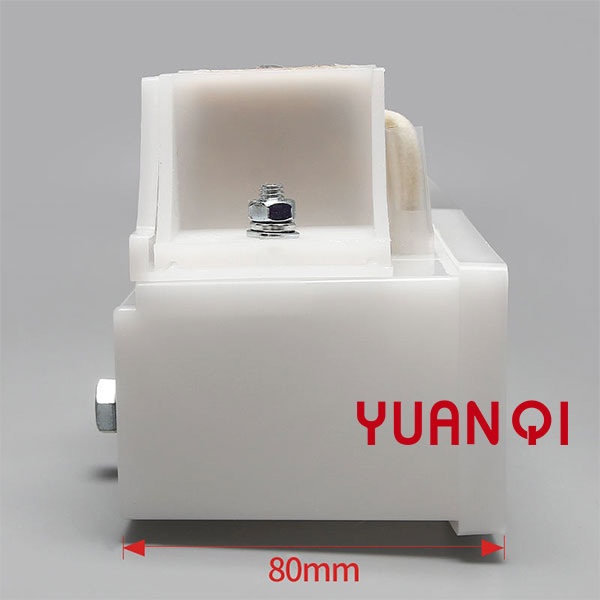

Product Display

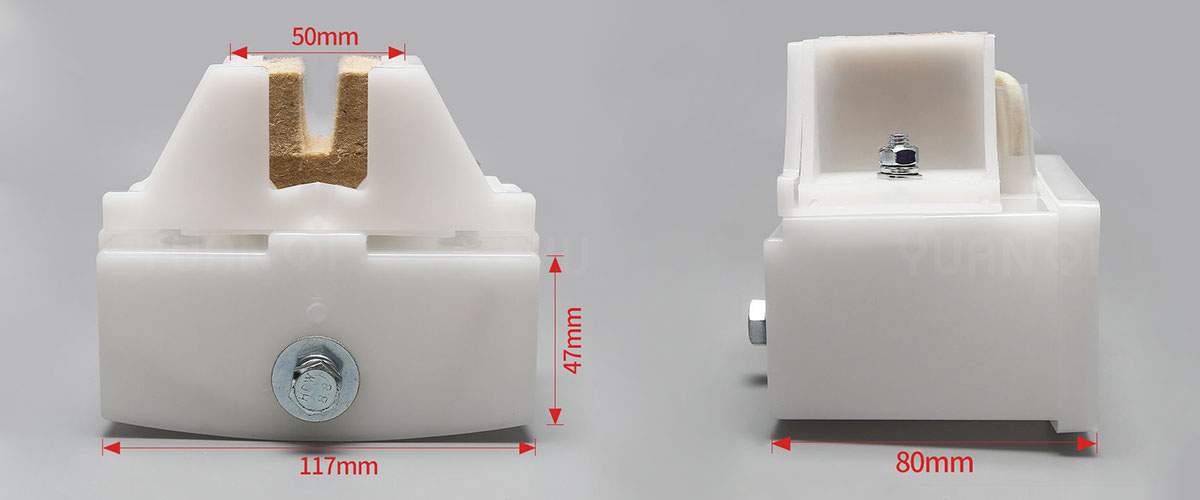

Specifications
|
Item |
Specification |
| Overall Width | 117 mm |
| Oil Reservoir Height | 47 mm |
| Center Rail Groove Depth | 50 mm |
117 mm Compact Housing
The compact square horseshoe design fits most standard counterweight guide shoe housings where installation space is limited.
47 mm Oil Reservoir Height
The medium-small reservoir balances:
· Lightweight construction
· Compact size
· Adequate oil storage capacity for routine maintenance cycles
50 mm Center Rail Groove
The center slot is designed to accommodate common guide rail working surfaces and guide shoe configurations, helping maintain proper felt alignment and lubrication contact.
Applications
Suitable for:
· Residential elevators
· Passenger elevators
· Compact elevator shafts
· Counterweight guide rails
· Car auxiliary guide rails
· Automatic guide rail lubrication systems
FAQs
To ensure compatibility, please provide the brand, model, or part number of your elevator. You can also send us photos of the existing part, especially the label or connector details. Our technical team will help you verify the correct replacement.
We supply both original brand parts and high-quality compatible replacements for major brands such as KONE, Otis, etc. All products are tested to ensure reliable performance.
Most products support low MOQ or even 1 piece for sample orders. Bulk orders will enjoy better pricing.
We have three strategically located warehouses in Saudi Arabia, Jiangsu, and Xi'an, ensuring stable inventory and fast delivery to meet global customer demands.
We accept T/T, Western Union, Alipay, and other common payment methods, providing flexible options for our global customers.
Yes, most products come with a 1 year warranty.
Yes, we ship worldwide via DHL, FedEx, UPS, air freight, or sea freight, depending on your needs and urgency.
Yes, our experienced team provides pre-sales selection support and after-sales technical assistance to help ensure correct installation and operation.
