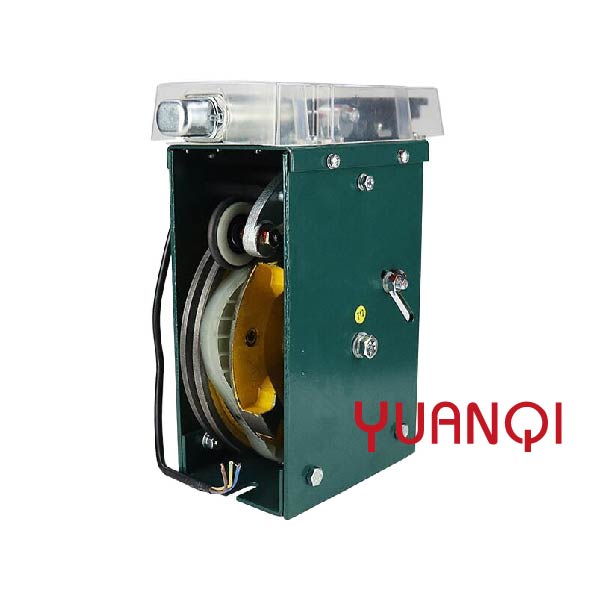

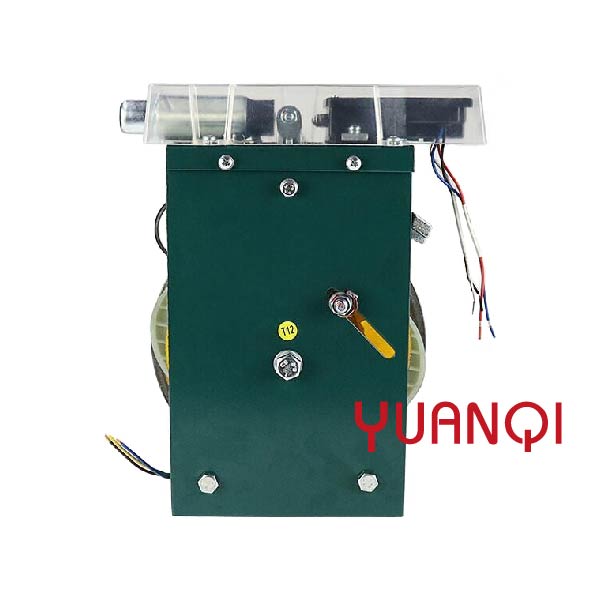

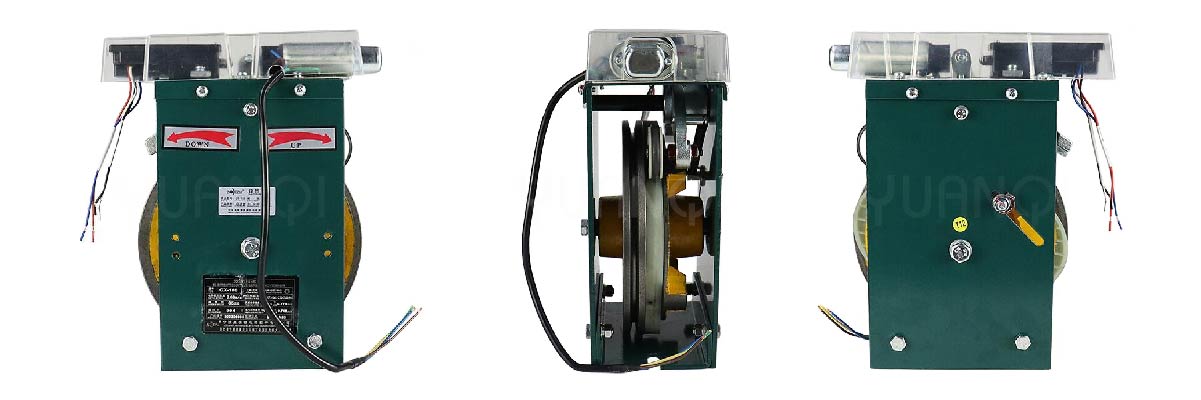

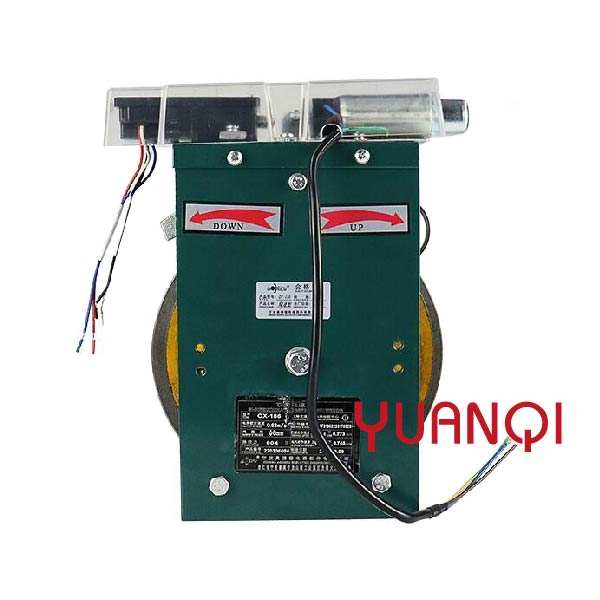

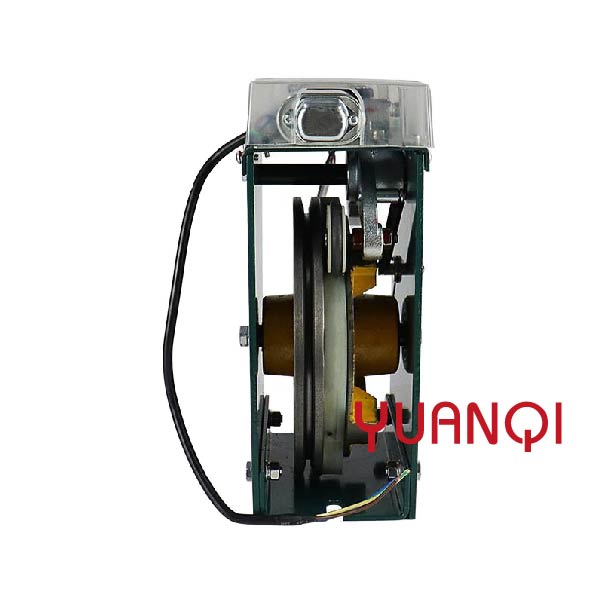

Elevator speed governor OX-186
Product Display
Specifications
| Product type | Elevator overspeed governor |
| Product model | OX-186 |
| Covered specifications (Rated speed) | ≤0.63m/s |
| Sheave diameter | φ200mm |
| Wire rope diameter | φ6mm |
| Pulling force | ≥500N |
| Power supply voltage | Standard AC220V, optional DC24V |
| Work location | Car side or counterweight side |
| Upward control | Permanent-magnet synchronous traction machine brake, counterweight safety gear, two-way security clamp |
| Downward control | Safety gear |
| Remote control | Operation and electrical switch reset can be tested electrically; mechanical mechanism can reset automatically |
Elevator speed governor OX-186, elevator speef limiter Two-way machine roomless electromagnetic. Other models are also available: OX-186A, OX-187, OX-186B. If you need different styles, feel free to contact us. We have a variety of elevator components available.
