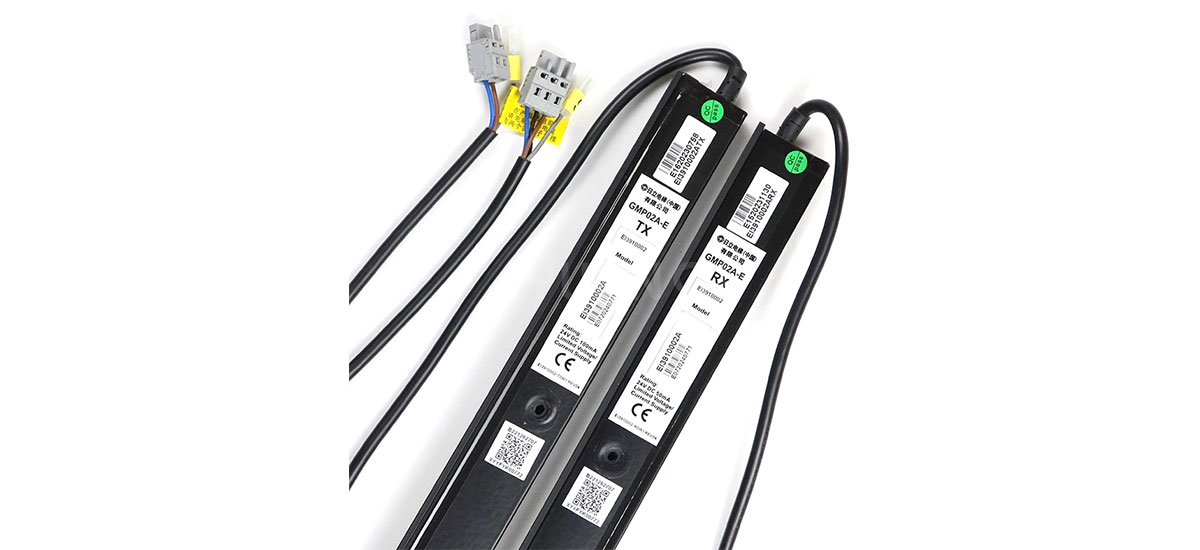

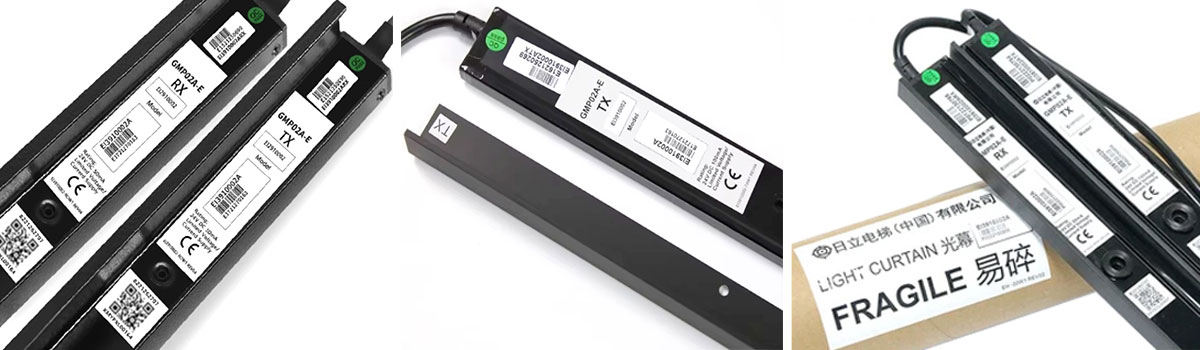

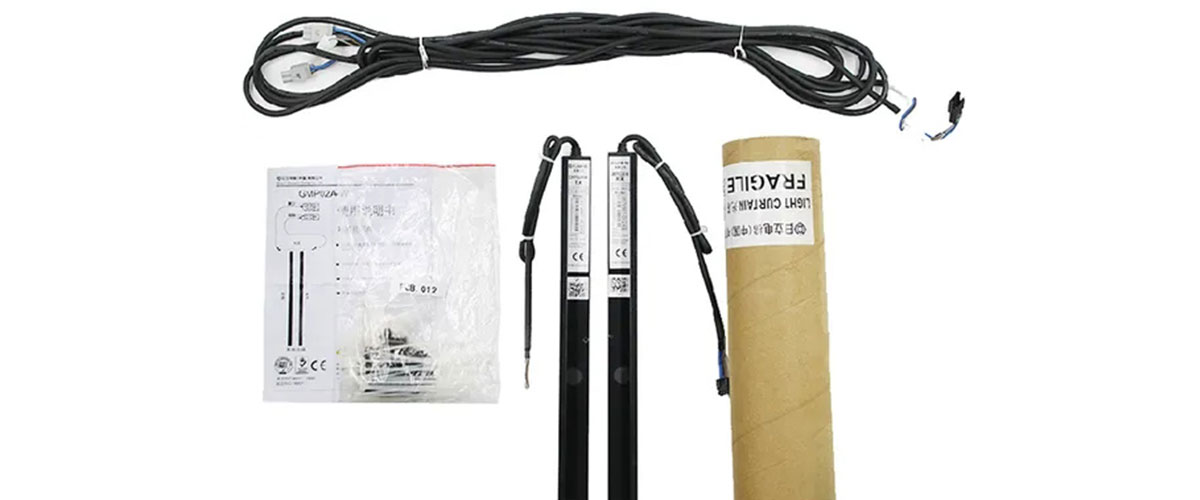

Hitachi Elevator Intelligent Integrated Light Curtain GMP02A-E
The GMP02A-E Elevator Light Curtain is a high-performance infrared safety protection device designed for Hitachi elevator systems. Installed on elevator car doors, it provides reliable obstacle detection to ensure passenger safety and smooth door operation.
With stable performance and strong anti-interference capability, this model is widely used in maintenance, replacement, and modernization projects.
Technical Specifications
|
Item |
Description |
| Model | GMP02A-E / GMP02A-W/E |
| Applicable Brand | Hitachi Elevators |
| Working Voltage | DC 24V |
| Output Type | NO / NC / NPN / PNP |
| Installation | Car door vertical mounting |
| Material | PC or Metal |
| Warranty | 12 Months |
Wiring Reference
Typical wiring follows a 4-wire or 5-wire configuration:
Brown: DC 24V (+)
Blue: 0V / GND
Black: Signal Output (NO / NPN / PNP)
White: NC Output or Sync
Grey/Yellow: Ground or Sync (optional)
Note: Original units usually come with dedicated connectors. Manual wiring should follow the correct pin definition.
Installation Notes
Transmitter (TX) and Receiver (RX) must be installed in pairs and aligned accurately
Ensure stable DC 24V power supply before operation
Use original or compatible connectors for best performance
FAQs
To ensure compatibility, please provide the brand, model, or part number of your elevator. You can also send us photos of the existing part, especially the label or connector details. Our technical team will help you verify the correct replacement.
We supply both original brand parts and high-quality compatible replacements for major brands such as KONE, Otis, etc. All products are tested to ensure reliable performance.
Most products support low MOQ or even 1 piece for sample orders. Bulk orders will enjoy better pricing.
We have three strategically located warehouses in Saudi Arabia, Jiangsu, and Xi'an, ensuring stable inventory and fast delivery to meet global customer demands.
We accept T/T, Western Union, Alipay, and other common payment methods, providing flexible options for our global customers.
Yes, most products come with a 1 year warranty.
Yes, we ship worldwide via DHL, FedEx, UPS, air freight, or sea freight, depending on your needs and urgency.
Yes, our experienced team provides pre-sales selection support and after-sales technical assistance to help ensure correct installation and operation.
