KONE Elevator Parts Elevator Inverter KDL16L 14A 18A 12A Inverter KM953503G21

Elevator inverters have basic functions such as voltage regulation, frequency modulation, voltage stabilization, and speed regulation. They mainly improve people’s perception of elevator comfort.

Brand: Kone

Type: KDL16L
KDL16S

Weight: 12.4KG

Send email to us Download PDF

Product Detail

Specifications

Model	Current	Part Number
KDL16L	12A	KM953503G21
KDL16L	14A	KM953503G21
KDL16L	12A	KM953503G42
KDL16L	18A	KM953503G50
KDL16S	12A	KM5100400V001
KDL16S	20A	KM5100400V002
KDL16S	20A	KM5100400V003
KDL16S	20A	KM5100400V004

The control cabinet inverters used by Kone Elevator are divided into models: KDL16L and KDL6R. It is an upgraded model of the previous generation V3F16L and V3F16R, with more stable quality. For elevator users whose original elevator inverter models are V3F16L and V3F16R, please choose the alternative V3F16L/R model. Original factory packaging, with product inspection and test reports. Free debugging materials.

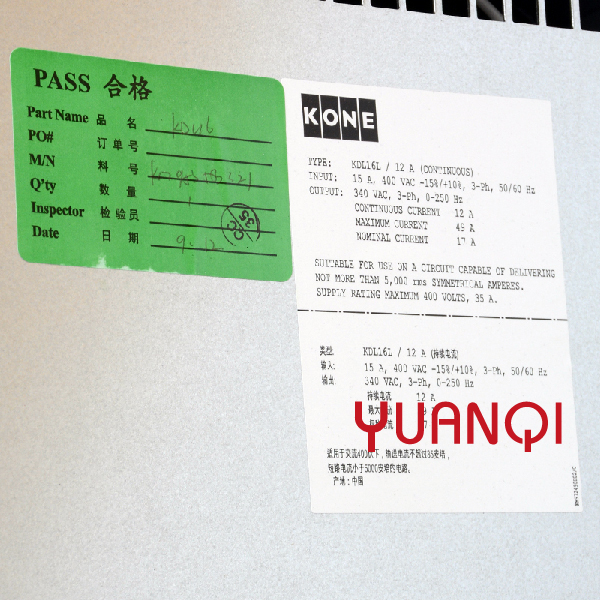

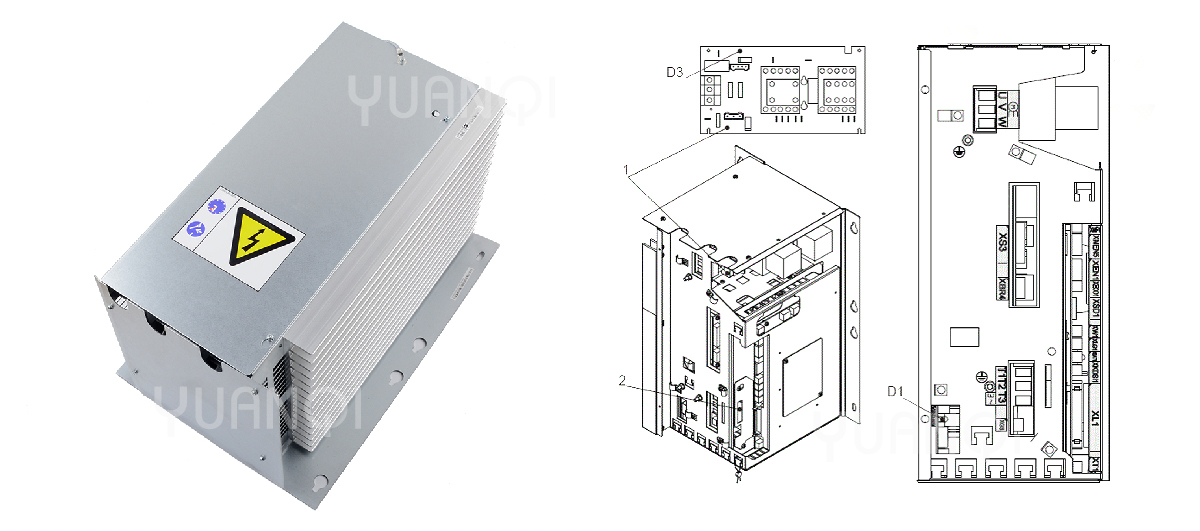

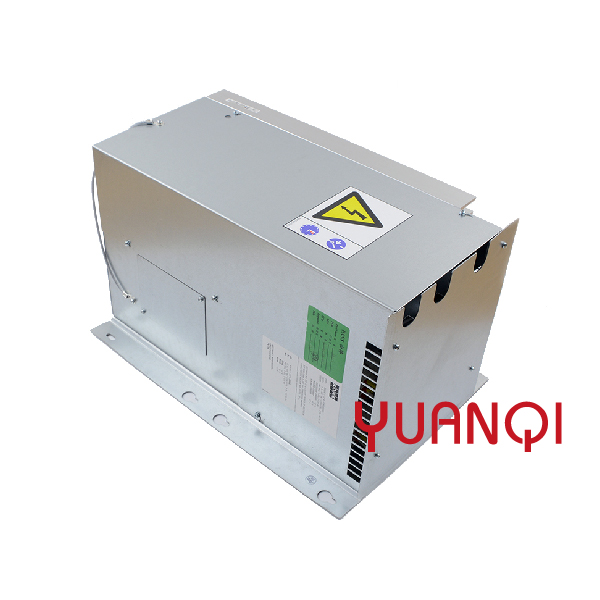

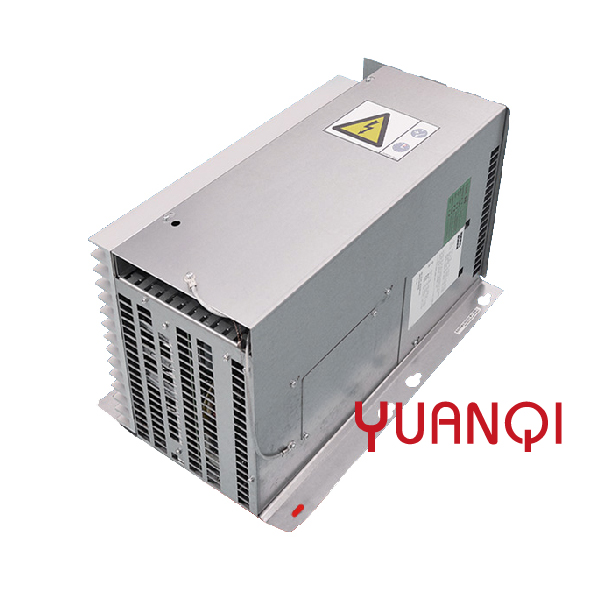

Product Display

Installation diagram

It is mainly used in LCE systems. When the elevator has a machine room, it is installed inside the control cabinet. When the elevator is without a machine room, it is installed in the elevator shaft.

Common Faults (Error Codes) & On-Site Troubleshooting

When the KDL16L encounters an abnormal condition, the following Drive Faults are commonly displayed on the KONE LCE mainboard or keypad:

0101 (Drive Module General Fault)
The most common software/hardware interlock protection fault. Priority should be given to checking whether the traction machine brake opens properly, whether the three-phase output cables have leakage to ground, or whether the internal IGBT module has failed.
0105 (Inverter Overtemperature)
The internal heatsink temperature of the inverter is too high. Focus on checking whether the cooling fan at the bottom of the inverter has stopped or become stuck, and whether dust has accumulated at the control cabinet ventilation openings.
0110 (DC Bus Voltage Fault)
Usually caused by an open charging current-limiting resistor, a damaged rectifier bridge, or dried/aged filter capacitors.

FAQs

How can I confirm if a part is compatible with my elevator?

To ensure compatibility, please provide the brand, model, or part number of your elevator. You can also send us photos of the existing part, especially the label or connector details. Our technical team will help you verify the correct replacement.

Do you supply original or replacement parts?

We supply both original brand parts and high-quality compatible replacements for major brands such as KONE, Otis, etc. All products are tested to ensure reliable performance.

What is your minimum order quantity (MOQ)?

Most products support low MOQ or even 1 piece for sample orders. Bulk orders will enjoy better pricing.

How fast is your delivery?

We have three strategically located warehouses in Saudi Arabia, Jiangsu, and Xi'an, ensuring stable inventory and fast delivery to meet global customer demands.

What payment methods do you accept?

We accept T/T, Western Union, Alipay, and other common payment methods, providing flexible options for our global customers.

Do you provide warranty for your products?

Yes, most products come with a 1 year warranty.

Can you support international shipping?

Yes, we ship worldwide via DHL, FedEx, UPS, air freight, or sea freight, depending on your needs and urgency.

Do you offer technical support?

Yes, our experienced team provides pre-sales selection support and after-sales technical assistance to help ensure correct installation and operation.
