Mitsubishi elevator door sensor MBS-S100 S100-C S100-T/R
The MBS-S100 is a classic and widely used 2-in-1 elevator door protection system designed for Mitsubishi Electric elevators.
Unlike conventional door sensors, the MBS-S100 combines infrared light curtain technology with a mechanical safety touch panel, providing dual-layer passenger protection and enhanced door safety performance.
This integrated design has been extensively applied in Mitsubishi elevator maintenance and modernization projects.

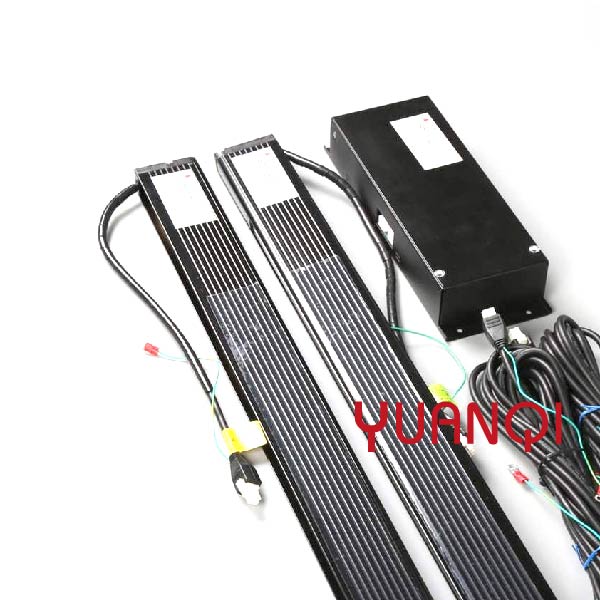

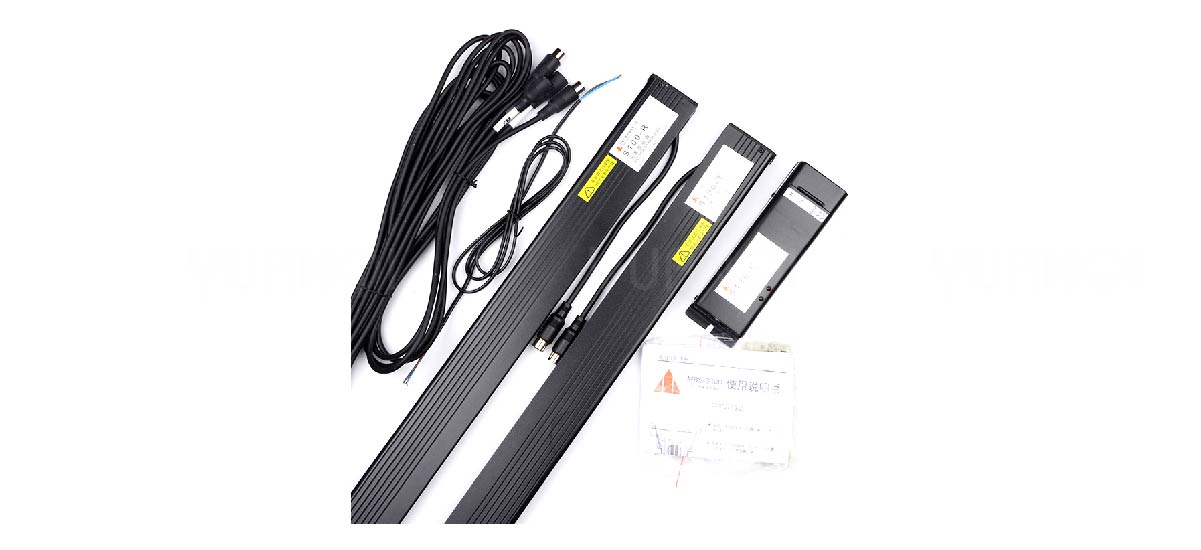

Product Display
Specifications
|
Item |
Description |
| System Model | MBS-S100 |

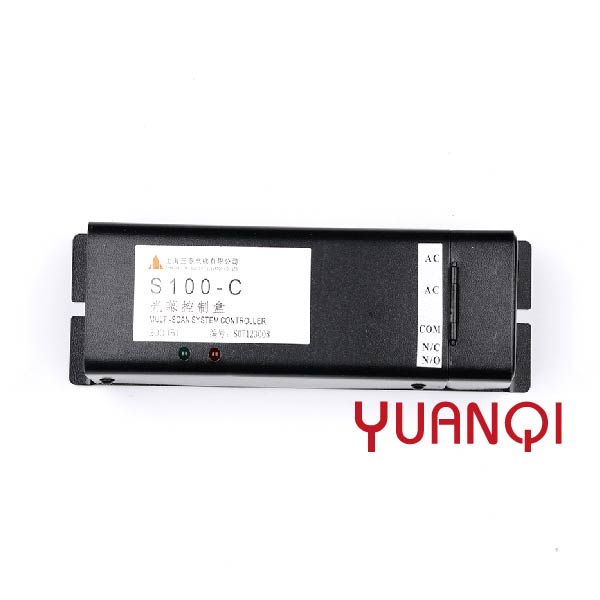

| Controller | S100-C |
| Sensor Bars | S100-T / S100-R |
| Standard Length | 2070 mm |
| Input Voltage | DC 24V |
| Protection Type | Light Curtain + Safety Edge |
| Installation | Elevator door system |
How the System Works
The MBS-S100 combines non-contact and contact-type protection into one integrated system.
1. Infrared Light Curtain Protection (Non-Contact)
The S100-T/R bars contain multiple infrared transmitters and receivers installed vertically on both sides of the elevator door.
Crossed infrared beams create an invisible safety screen.
When an object or passenger interrupts the beam:
✔ Door reopening signal is triggered
✔ Passenger entrapment is prevented
2. Mechanical Safety Edge Protection (Contact-Type)
If an obstacle reaches areas not fully covered by optical detection or physically contacts the safety edge:
✔ Internal micro-switch activates immediately
✔ Door reopening is forced mechanically
This creates a secondary protection layer for enhanced safety.
