Wuxi General Speed Limiter Traction Rope 6 8 12 13 10mm Hemp Core Elevator Wire Rope

Because the steel wire rope is a special product, the product needs to be cut. The steel wire rope is measured in meters. Please determine the specifications and meters required on site.








  • Brand: Wuxi General
  • Type: 6mm&8mm&10mm&11mm&12mm&13mm&14mm&16mm
  • Material: Steel core&Hemp core
  • Use: Speed governor wire rope&Traction wire rope
  • Warranty : 2 years
  • Applicable: Mitsubishi, Hitachi, KONE, Thyssen, Otis, Schindler, etc.
    • Download PDF

    Product Detail

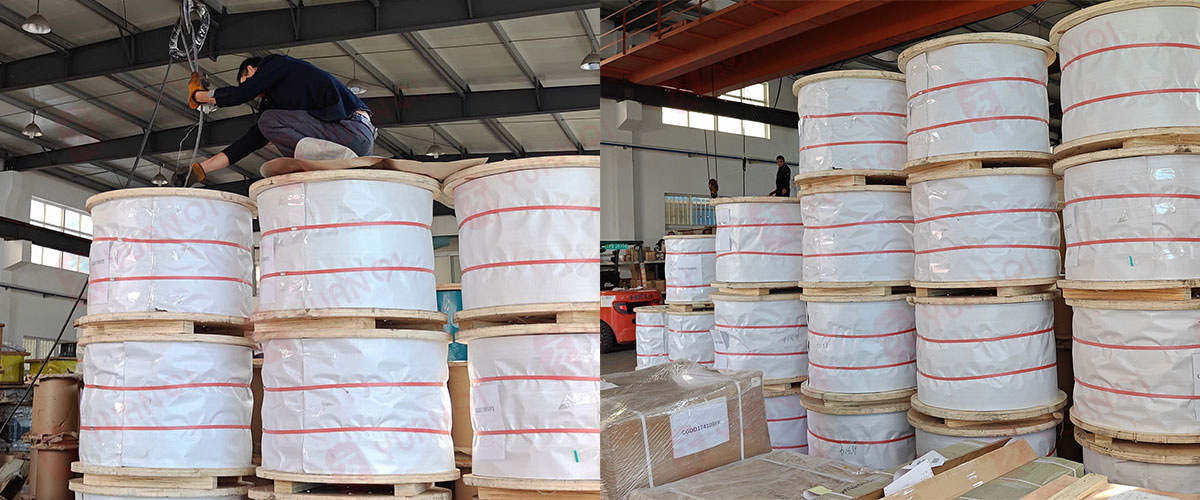

    Product Display

    Wuxi-general-elevator-wire-rope.....

    How to measure wire rope diameter

    The correct method of measuring the wire rope is of great significance for the selection of the diameter of the wire rope and the accumulation of data on the change of the diameter of the wire rope during use. As shown in the figure below, whether the measurement method of steel wire diameter is correct or not, the measurement data obtained will be completely different.

    Specifications

    Recommendation form for model selection
    Steel wire rope model Diameter（mm） Remark
    Speed limiting wire rope
    Traction wire rope    		 6*19S+PP-6.0 6 For speed governor (nylon core, diameter 6mm) Elevator speed governor
    8*19S+PP-8.0 8 For speed governor (nylon core, diameter 8mm) Elevator speed governor
    Traction wire rope 8*19S+NF-8.0 8 Generally applicable to floors below 25 (hemp core diameter 8mm) elevator speed ≤1.75m/S
    8*19S+NF-10.0 10 Generally applicable to floors below 30 (hemp core diameter 10mm) elevator speed ≤ 2 m/S
    8*19S+NF-11.0 11 Generally applicable to floors below 30 (heme core diameter 11mm) elevator speed ≤ 2 m/S
    8*19S+NF-12.0 12 Generally applicable to floors below 30 (heme core diameter 12mm) elevator speed ≤ 2 m/S
    8*19S+NF-13.0 13 Generally applicable to floors below 30 (hemp core diameter 13mm) elevator speed ≤ 2 m/S
    8*19S+NF-14.0 14 Generally applicable to floors below 30 (heme core diameter 14mm) elevator speed ≤ 2 m/S
    8*19S+NF-16.0 16 Generally applicable to floors below 30 (hemp core diameter 16mm) elevator speed ≤1.75m/S
    8*19S+8*7+PP-8.0 8 Generally applicable to floors below 40 (semi-steel core diameter 8mm) elevator speed ≤ 2.5 m/S
    8*19S+8*7+PP-10.0 10 Generally applicable to floors below 40 (semi-steel core diameter 10mm) elevator speed ≤3.5m/S
    8*19S+8*7+PP-12.0 12 Generally applicable to floors below 40 (semi-steel core diameter 12mm) elevator speed ≤3.5m/S
    8*19S+8*7+PP-13.0 13 Generally applicable to floors below 50 (semi-steel core diameter 13mm) elevator speed ≤3.5m/S
    8*19S+8*7+1*19S-8.0 8 Generally applicable to floors below 50 (all steel core diameter 8mm) elevator speed ≤ 4 m/S
    8*19S+8*7+1*19S-10.0 10 Generally applicable to floors below 50 (all steel core diameter 10mm) elevator speed ≤ 4 m/S
    8*19S+8*7+1*19S-12.0 12 Generally applicable to floors below 50 (all steel core diameter 12mm) elevator speed ≤ 4 m/S
    8*19S+8*7+1*19S-13.0 13 Generally applicable to floors below 50 (all steel core diameter 13mm) elevator speed ≤ 4 m/S
    Advantages of our wire ropes
    1. The structure is stable and not loose, has good roundness, no burrs, no odor, strong tensile strength, high toughness, and fatigue resistance.
    2. Use high-quality elevator rope special grease and surface grease to prevent corrosion and rust, and increase the friction with the wheel groove to prevent slipping.
    3. Using the international cooling wire drawing process, all steel wires have no joints, no wires, no strands. Ensure the fatigue resistance of the steel rope.
    4. Comply with JIS standards. The steel rope is flexible and does not damage the wheel groove. The online pre-tensioning and rope closing process reduces the minimum elongation rate to a minimum, reduces secondary debugging, and ensures smooth operation of the elevator and accurate parking.
