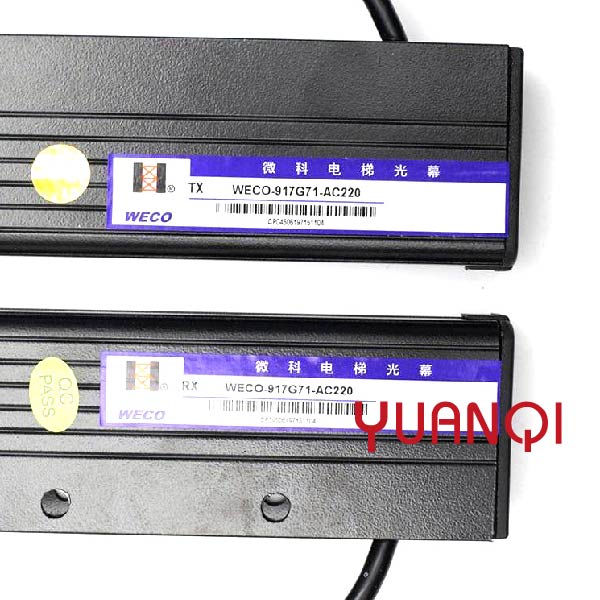

WECO elevator door sensor 917G71 AC220
Product Display
Specifications
| Technical Parameters | 917G6 | 917G7 | ||
| Technical Features | ||||
| Number of Infra Red Diodes | 17 Diode sets | 32 Diode sets | ||
| Response Time | 45ms relay output |
61ms relay output |
||
| 21ms transistor output |
37ms transistor output |
|||
| Scanning Beams | 94-33 Beams | 154-94 Beams | ||
| infrared diodes range | 117.5mm | 58.8mm | ||
| Detecting Height | 20~ 1841mm | |||
| Tolerance | Upldown:±15mm70 Back/forth: ±3mm/ 50 | |||
| Detecting Range | 0~4m | |||
| Operating Temperature | -20℃~ +65℃ | |||
| Reliability | ||||
| Light lmmunity | 100000Lux. | |||
| Protection Level | IP54 | |||
| Vibration | Vibration 20 to 500Hz 4hrs per X-Y-Z axis, sinusoidal vibration 30Hz rms 30mins per X-Y-Z axis | |||
| enviornment test (hing & low temperature) |
GB/T2423.1—GB/T2423.4 | |||
| EMC | ||||
| EN12015 EN12016 |
general circuit level | |||
| Function | ||||
| Voice Reminder | after continuous detection for 15s,buzzer ON. | |||
WECO elevator door sensor 917G71 AC220 two-in-one elevator light curtain. If you require additional models, feel free to contact us. We have a wide selection of elevator components.
